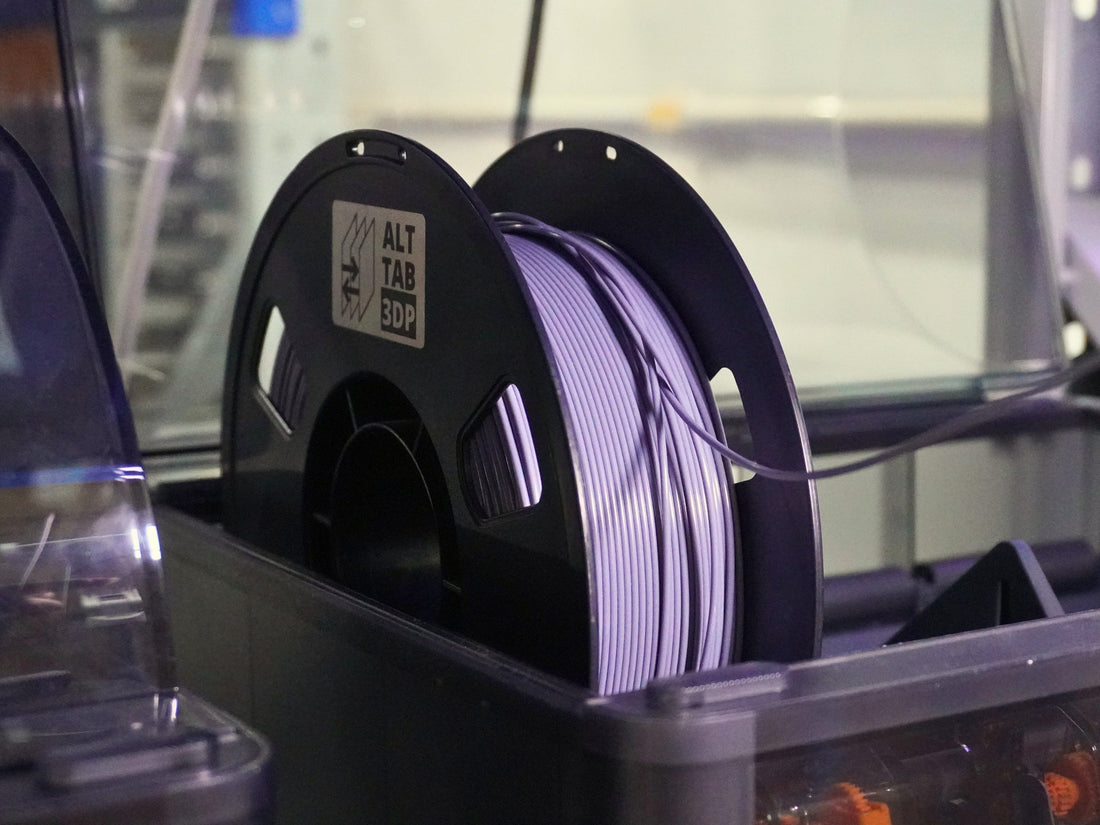

Why Does My Filament Get Tangled? (And How to Stop It)

You start a long print, walk away, and come back to find it stopped halfway. The filament is knotted on the spool and the extruder is grinding. It feels like a factory fault. It almost never is.

Spools don't leave the factory tangled. Once you see how a spool is made, it's clear where tangles actually come from, and how easy they are to prevent.

How a spool of filament is made

1. Extruded. Plastic pellets are melted and pushed through a die to form one continuous strand.
2. Cooled. The strand runs through a water bath so it sets at the right shape.
3. Measured. Laser gauges check the diameter continuously as it passes through.
4. Machine-wound. A winding machine lays the strand onto the spool under constant tension, in neat, evenly spaced layers. Each loop sits snugly beside the one before it.
5. Clipped and sealed. The end is locked into a hole in the spool's side, then the spool is vacuum-sealed with desiccant.

Watch how the winding machine lays every loop down under tension:

Credits: @isanmate_casper_peng | https://www.instagram.com/reel/DNOCC6ixYX3

And here's the extrusion line that turns plastic pellets into a perfectly round strand:

Credits: "3D printer filament extrusion machine" by RYAN TAN YAOAN Plastic Machinery | https://www.youtube.com/shorts/LFfe1JKyXdQ

Because every loop is wound under tension, the strand can't cross over itself on the winding machine. For a tangle to form, a loop has to come loose first. That only happens once the spool has been opened.

How a tangle actually forms

The moment the filament end is let go, the tension holding each loop in place is released. The outer loops spring loose, and one of them slips down and tucks under the loops beside it. This is called a crossover.

You won't notice it at the time. The spool looks normal and you keep printing. Hours or days later, the printer unwinds down to that point. The trapped loop pulls tight against the strand on top of it, forms a knot, and the print stops.

That delay is why tangles look like a manufacturing defect. The knot was actually created the last time the spool was handled loosely, often several prints earlier.

Don't just take our word for it

Prusa, one of the world's biggest 3D printer and filament makers, says it plainly in its official help guide on tangled filament:

"It is physically impossible that, during production, a filament coil can get under another."

Prusa also notes that even a spool without perfect winding isn't more likely to tangle. The cause it names is "letting the filament end go, for example during a filament unloading."

eufyMake, Anker's 3D printing brand, explains the same thing in its guide to preventing filament tangles: "A knot can only form if the end of the strand is passed under another loop." That can't happen on an automated winding machine. It can only happen after the end is let go.

The usual causes

• Letting go of the end while loading, unloading or cutting the tip.
• Leaving the end loose instead of clipping it into the spool's side hole.
• Rewinding by hand without tension, for example after unloading from the printer or AMS.
• Pulling filament off the side of a spool that isn't free to turn.

How to prevent tangles

• Never let go of the end. Keep it pinched between your fingers whenever it isn't in the printer.
• Clip it every time. Push the end through the hole in the spool's side as soon as you unload.
• Keep tension when rewinding. Hold the strand taut with your thumb as you turn the spool.
• Check before long prints. Look over the spool for loose loops before you start anything that runs for hours.

Already tangled? How to fix it

1. Pause or stop the print and unload the filament.
2. Unwind slowly until you reach the loop that's trapped under its neighbours.
3. Free the crossover and keep unwinding until the strand runs cleanly from the spool.
4. Rewind under tension, keeping your thumb on the strand so each loop sits snugly.
5. Clip the end into the spool's side hole before you put it back.

Tips for unwinding a tangle

• Don't yank it. Pulling harder only tightens the knot. Ease the tension off first.
• Let the spool turn. Slide it onto a rod, a broom handle or your printer's spool holder so it spins freely while you work.
• Follow the strand back. Start at the knot and trace the trapped loop back to where it slipped under. That's the crossover to free.
• Turn the spool backwards. Rotating it a few turns the opposite way often loosens the trapped loop enough to lift it out.
• Clip the end while you work. A binder clip or a strip of tape stops the free end springing loose and starting a new tangle.
• Avoid sharp bends. Lay loose filament flat on a clean table. Kinks can snap PLA or jam the feeder later.
• Trim damaged filament. Cut off any section that's kinked, flattened or chewed by the extruder before you load it again.
• Too deep to free? Cut the filament just before the knot, unwind past it and keep the rest. You lose a little filament, but not the whole spool.

Not a tangle? Check for brittle filament

If the filament snapped rather than knotted, it may have absorbed moisture. Wet PLA turns brittle and breaks inside the feeder tube.

FAQ

Is a tangled spool a manufacturing defect? Almost never. Spools are machine-wound under tension, so tangles form after opening, when a loop slips loose and crosses under its neighbours.

Why did the tangle appear halfway through the spool? The crossover was created earlier, when the end was let go. The knot only tightens once the printer unwinds down to that point.

Does the AMS cause tangles? The AMS feeds from a spool that turns freely, so it doesn't create crossovers on its own. Tangles usually come from how the spool was handled before it went in, or from a loose end after unloading.
